ALUMINIUM GROOVE FIT RANGE

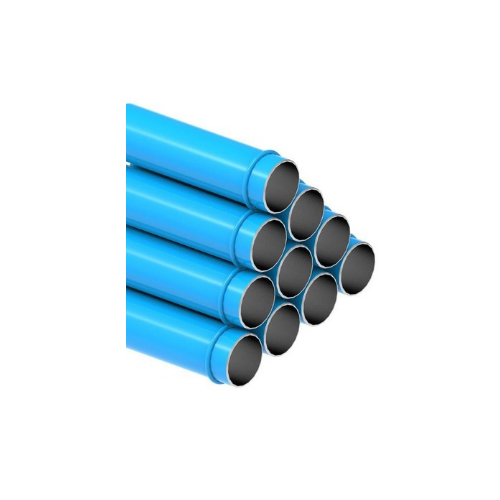

ALUMINIUM PIPES
PART NO. | SIZE MM/SM (DIA OF PIPE) | OD(MM) |
PG-82.900.040.106 | 40 | 5.8 mt. |
PG-82.900.050.106 | 50 | 5.8 mt. |
PG-82.900.063.106 | 63 | 5.8 mt. |
PG-82.900.090.106 | 90 | 5.8 mt. |
PG-82.900.100.106 | 100 | 5.8 mt. |
PG-82.900.150.106 | 150 | 5.8 mt. |
PG-82.900.200.106 | 200 | 5.8 mt. |
PG-82.900.250.106 | 250 | 5.8 mt. |

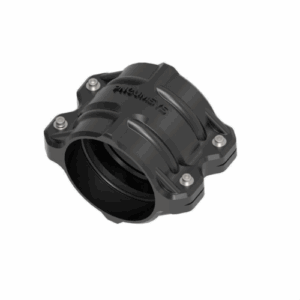

GROOVE COUPLING
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNGR0240 | 40 |
PNGR0250 | 50 |
PNGR0263 | 63 |
PNGR0290 | 90 |
PNGR02100 | 100 |
PNGR02150 | 150 |
PNGR02200 | 200 |
PNGR02250 | 250 |

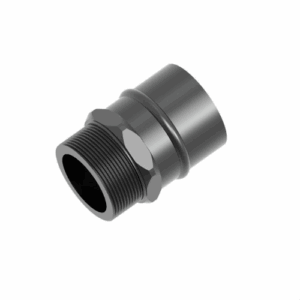

MALE ADAPTOR
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNGRM0240 | 40 X 1.1/2" |
PNGRM50112 | 50 X 1.1/2" |
PNGRM5002 | 50 X 2" |
PNGRM6302 | 63 X 2" |
PNGRM63212 | 63 X 2.1/2" |
PNGRM9003 | 90 X 3" |
PNGRM1002 | 100 X 2" |
PNGRM1003 | 100 X 3" |

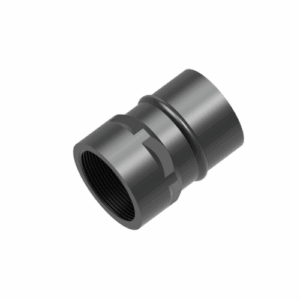

FEMALE ADAPTOR
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNGRF40112 | 40 X 1.1/2" |
PNGRF50112 | 50 X 1.1/2" |
PNGRF5002 | 50 X 2" |
PNGRF6302 | 63 X 2" |
PNGRF63212 | 63 X 2.1/2" |
PNGRF90112 | 90 X 1.1/2" |
PNGRF9003 | 90 X 3" |
PNGRF1002 | 100 X 2" |
PNGRF1003 | 100 X 3" |

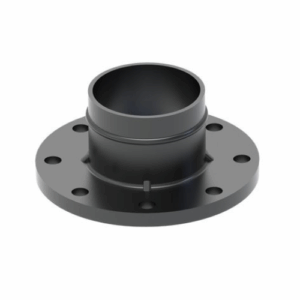

FLANGE ADAPTOR
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNGR0550 | 50 X 50 |
PNGR0563 | 63 X 63 |
PNGR0590 | 90 X 90 |
PNGR05100 | 100 X 100 |
PNGR05150 | 150 X 150 |
PNGR05200 | 200 X 200 |
PNGR05250 | 250 X 250 |

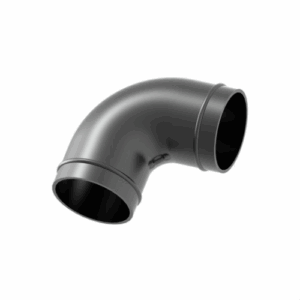

EQUAL ELBOW
PART NO. | PORT OUTLET |
PNGR0340 | 40 |
PNGR0350 | 50 |
PNGR0363 | 63 |
PNGR0390 | 90 |
PNGR03100 | 100 |
PNGR03150 | 150 |
PNGR03200 | 200 |

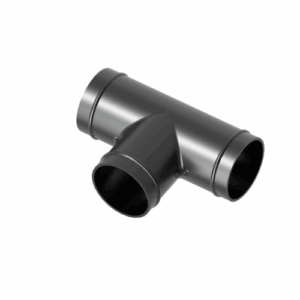

EQUAL TEE
PART NO. | PORT OUTLET |
PNGR0440 | 40 |
PNGR0450 | 50 |
PNGR0463 | 63 |
PNGR0490 | 90 |
PNGR04100 | 100 |
PNGR04150 | 150 |
PNGR04200 | 200 |
PNGR04250 | 250 |

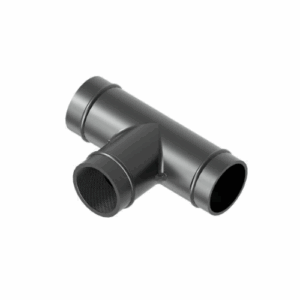

FEMALE THREADED TEE
PART NO. | PORT OUTLET |
PNFRT50112 | 50 X 1.1/2" |
PNFRT63112 | 63 X 1.1/2" |
PNFRT90212 | 90 X 2.1/2" |
PNFRT15033 | 150 X 3" |

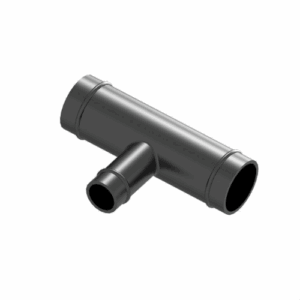

REDUCING TEE
PART NO. | PORT OUTLET |
PNRT6350 | 65 X 50 |
PNRT9050 | 90 X 50 |
PNRT9063 | 90 X 63 |
PNRT150100 | 150 X 100 |

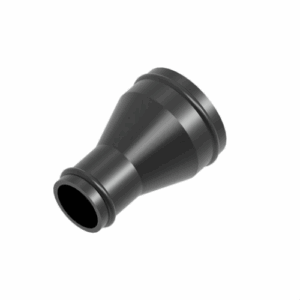

REDUCING STRAIGHT CONNECTOR
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNRSC5020 | 50 X 20 |
PNRSC5025 | 50 X 25 |
PNRSC5040 | 50 X 40 |
PNRSC6325 | 63 X 25 |
PNRSC6340 | 63 X 40 |
PNRSC6350 | 63 X 50 |
PNRSC9050 | 90 X 50 |
PNRSC9063 | 90 X 63 |
PNRSC10050 | 100 X 50 |
PNRSC10063 | 100 X 63 |
PNRSC10090 | 100 X 90 |
PNRSC150100 | 150 X 100 |
PNRSC200100* | 200 X 100 |
PNRSC250100 | 250 X 100 |

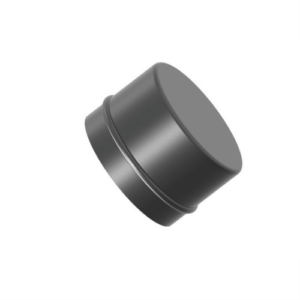

END CUP
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNGR1040 | 40 |
PNGR1050 | 50 |
PNGR1063 | 63 |
PNGR1090 | 90 |
PNGR10100 | 100 |
PNGR10150 | 150 |
PNGR10200 | 200 |
PNGR10250 | 250 |

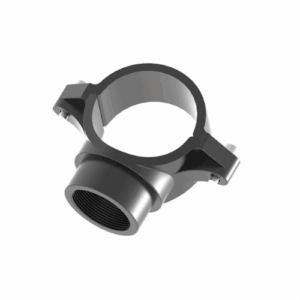

SADDLE BRANCH
PART NO. | SIZE MM/SM (DIA OF PIPE) |
PNSB2212 | 22 X 1/2" |
PNSB2512 | 25 X 1/2" |
PNSB2812 | 28 X 1/2" |
PNSB3212 | 32 X 1/2" |
PNSB4012 | 40 X 1/2" |
PNSB4034 | 40 X 3/4" |
PNSB5012 | 50 X 1/2" |
PNSB5034 | 50 X 3/4" |
PNSB5001 | 50 X 1" |
PNSB6312 | 63 X 1/2" |
PNSB6334 | 63 X 3/4" |
PNSB6301 | 63 X 1" |
PNSB7501 | 75 X 1" |
PNSB7502 | 75 X 2" |
PNSB9001 | 90 X 1" |
PNSB9002 | 90 X 2" |
PNSB10001 | 100 X 1" |
PNSB10002 | 100 X 2" |
PNSB11001 | 110 X 1" |
PNSB11002 | 110 X 2" |
PNSB15001 | 150 X 1" |
PNSB15002 | 150 X 2" |
PNSB15003 | 150 X 3" |
PNSB25002 | 200 X 2'' |
PNSB25003 | 250 X 3'' |
