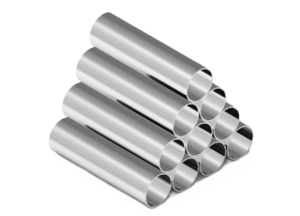

PIPES
PART NO. | DN | OD (MM) | THICKNESS (MM) | LENGTH (mm) |
SSPNP01015 | 15 | 16.00 | 0.80 | 5800.00 |
SSPNP01020 | 20 | 20.00 | 1.00 | 5800.00 |
SSPNP01025 | 25 | 25.40 | 1.00 | 5800.00 |
SSPNP01032 | 32 | 32.00 | 1.20 | 5800.00 |
SSPNP01040 | 40 | 40.00 | 1.20 | 5800.00 |
SSPNP01050 | 50 | 50.80 | 1.20 | 5800.00 |
SSPNP01060 | 60 | 63.50 | 1.50 | 5800.00 |
SSPNP01065 | 65 | 76.10 | 1.50 | 5800.00 |
SSPNP01080 | 80 | 89.00 | 2.00 | 5800.00 |
SSPNP010100 | 100 | 101.60 | 2.00 | 5800.00 |
SSPNP010125 | 125 | 133.00 | 2.50 | 5800.00 |
SSPNP010150 | 150 | 159.00 | 2.50 | 5800.00 |
SSPNP010200 | 200 | 219.00 | 3.00 | 5800.00 |
SSPNP010250 | 250 | 273.00 | 4.00 | 5800.00 |
SSPNP010300 | 300 | 325.00 | 4.00 | 5800.00 |

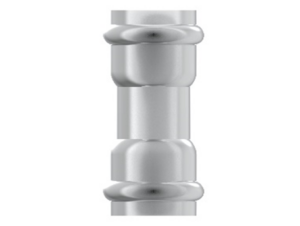

CONNECTOR
PART NO. | DN |
S1500 00 | 15 |
S2000 00 | 20 |
S2500 00 | 25 |
S3200 00 | 32 |
S4000 00 | 40 |
S5000 00 | 50 |
S6000 00 | 60 |
S6500 00 | 65 |
S8000 00 | 80 |
S1B00 00 | 100 |

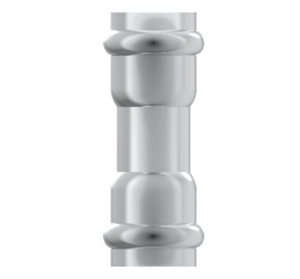

ADJUSTABLE CONNECTOR
PART NO. | DN |
S1500 0K | 15 |
S2000 0K | 20 |
S2500 0K | 25 |
S3200 0K | 32 |
S4000 0K | 40 |
S5000 0K | 50 |
S6000 0K | 60 |
S6500 0K | 65 |
S8000 0K | 80 |
S1B00 0K | 100 |

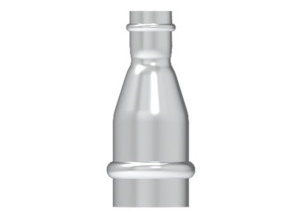

REDUCING CONNECTOR
PART NO. | DN |
R2015 00 | 20 X 15 |
R2515 00 | 25 X 15 |
R2520 00 | 25 X 20 |
R3215 00 | 32 X 15 |
R3220 00 | 32 X 20 |
R3225 00 | 32 X 25 |
R4015 00 | 40 X 15 |
R4020 00 | 40 X 20 |
R4025 00 | 40 X 25 |
R4032 00 | 40 X 32 |
R5015 00 | 50 X 15 |
R5020 00 | 50 X 20 |
R5025 00 | 50 X 25 |
R5032 00 | 50 X 32 |
R5040 00 | 50 X 40 |
R6032 00 | 60 X 32 |
R6040 00 | 60 X 40 |
R6050 00 | 60 X 50 |
R6532 00 | 65 X 32 |
R6540 00 | 65 X 40 |
R6550 00 | 65 X 50 |
R6560 00 | 65 X 60 |
R8032 00 | 80 X 32 |
R8040 00 | 80 X 40 |
R8050 00 | 80 X 50 |
R8060 00 | 80 X 60 |
R8065 00 | 80 X 65 |
R1B32 00 | 100 X 32 |
R1B40 00 | 100 X 40 |
R1B50 00 | 100 X 50 |
R1B60 00 | 100 X 60 |
R1B65 00 | 100 X 65 |
R1B80 00 | 100 X 80 |

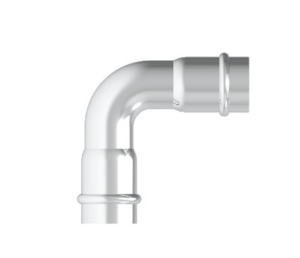

A-90˚ ELBOW
PART NO. | DN |
E1500 00 | 15 |
E2000 00 | 20 |
E2500 00 | 25 |
E3200 00 | 32 |
E4000 00 | 40 |
E5000 00 | 50 |
E6000 00 | 60 |
E6500 00 | 65 |
E8000 00 | 80 |
E1B00 00 | 100 |

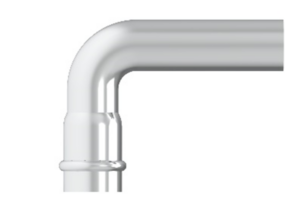

B-90˚ ELBOW
PART NO. | DN |
E1500 0B | 15 |
E2000 0B | 20 |
E2500 0B | 25 |
E3200 0B | 32 |
E4000 0B | 40 |
E5000 0B | 50 |
E6000 0B | 60 |
E6500 0B | 65 |
E8000 0B | 80 |
E1B00 0B | 100 |

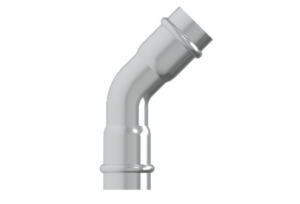

A-45˚ ELBOW
PART NO. | DN |
E1500 45 | 15 |
E2000 45 | 20 |
E2500 45 | 25 |
E3200 45 | 32 |
E4000 45 | 40 |
E5000 45 | 50 |
E6000 45 | 60 |
E6500 45 | 65 |
E8000 45 | 80 |
E1B00 45 | 100 |

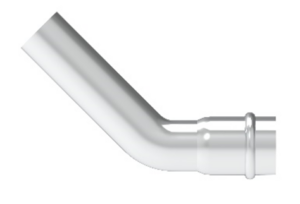

B-45˚ ELBOW
PART NO. | DN |
E1500 4B | 15 |
E2000 4B | 20 |
E2500 4B | 25 |
E3200 4B | 32 |
E4000 4B | 40 |
E5000 4B | 50 |
E6000 4B | 60 |
E6500 4B | 65 |
E8000 4B | 80 |
E1B00 4B | 100 |
MALE 90˚ ELBOW
PART NO. | DN |
E1515 0M | 15 X 1/2" |
E2015 0M | 20 X 1/2" |
E2020 0M | 20 X 3/4" |
E2515 0M | 25 X 1/2" |
E2520 0M | 25 X 3/4" |
E2525 0M | 25 X 1" |
E3225 0M | 32 X 1" |
E3232 0M | 32 X 1.1/4" |
E4032 0M | 40 X 1.1/4" |
E4040 0M | 40 X 1.1/2" |
E5040 0M | 50 X 1.1/2" |
E5050 0M | 50 X 2" |

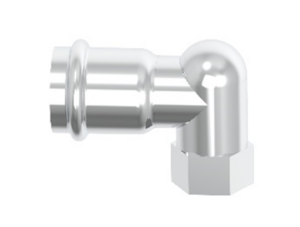

FEMALE SHORT 90˚ ELBOW
PART NO. | DN |
E1515 2F | 15 X 1/2" |
E2015 2F | 20 X 1/2" |
E2020 2F | 20 X 3/4" |
E2525 2F | 25 X 1" |

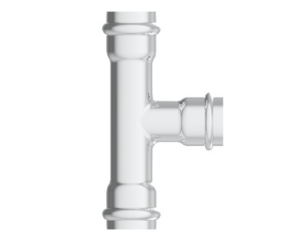

EQUAL TEE
PART NO. | DN |
T1500 00 | 15 |
T2000 00 | 20 |
T2500 00 | 25 |
T3200 00 | 32 |
T4000 00 | 40 |
T5000 00 | 50 |
T6000 00 | 60 |
T6500 00 | 65 |
T8000 00 | 80 |
T1B00 00 | 100 |

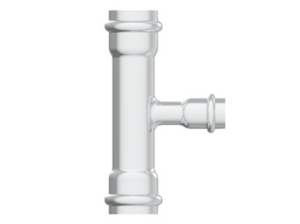

REDUCING TEE
PARTS NO. | DN |
T2015 0R | 20 X 15 |
T2515 0R | 25 X 15 |
T2520 0R | 25 X 20 |
T3215 0R | 32 X 15 |
T3220 0R | 32 X 20 |
T3225 0R | 32 X 25 |
T4015 0R | 40 X 15 |
T4020 0R | 40 X 20 |
T4025 0R | 40 X 25 |
T4032 0R | 40 X 32 |
T5015 0R | 50 X 15 |
T5020 0R | 50 X 20 |
T5025 0R | 50 X 25 |
T5032 0R | 50 X 32 |
T5040 0R | 50 X 40 |
T6020 0R | 60 X 20 |
T6025 0R | 60 X 25 |
T6032 0R | 60 X 32 |
T6040 0R | 60 X 40 |
T6050 0R | 60 X 50 |
T6520 0R | 65 X 20 |
T6525 0R | 65 X 25 |
T6532 0R | 65 X 32 |
T6540 0R | 65 X 40 |
T6550 0R | 65 X 50 |
T6560 0R | 65 X 60 |
T8020 0R | 80 X 20 |
T8025 0R | 80 X 25 |
T8032 0R | 80 X 32 |
T8040 0R | 80 X 40 |
T8050 0R | 80 X 50 |
T8060 0R | 80 X 60 |
T8065 0R | 80 X 65 |
T1B20 0R | 100 X 20 |
T1B25 0R | 100 X 25 |
T1B32 0R | 100 X 32 |
T1B40 0R | 100 X 40 |
T1B50 0R | 100 X 50 |
T1B60 0R | 100 X 60 |
T1B65 0R | 100 X 65 |
T1B80 0R | 100 X 80 |

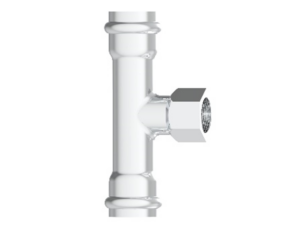

FEMALE TEE
PART NO. | DN |
T1515 0F | 15 X 1/2" |
T2015 0F | 20 X 1/2" |
T2020 0F | 20 X 3/4" |
T2515 0F | 25 X 1/2" |
T2520 0F | 25 X 3/4" |
T2525 0F | 25 X 1" |
T3215 0F | 32 X 1/2" |
T3220 0F | 32 X 3/4" |
T3225 0F | 32 X 1" |
T3232 0F | 32 X 1.1/4" |
T4015 0F | 40 X 1/2" |
T4020 0F | 40 X 3/4" |
T4025 0F | 40 X 1" |
T4032 0F | 40 X 1.1/4" |
T4040 0F | 40 X 1.1/2" |
T5015 0F | 50 X 1/2" |
T5020 0F | 50 X 3/4" |
T5025 0F | 50 X 1" |
T5032 0F | 50 X 1.1/4" |
T5040 0F | 50 X 1.1/2" |
T5050 0F | 50 X 2" |
T6050 0F | 60 X 2" |
T6550 0F | 65 X 2" |
T8050 0F | 80 X 2" |
T1B50 0F | 100 X 2" |
MALE TEE
PART NO. | DN |
T1515 0M | 15 X 1/2" |
T2015 0M | 20 X 1/2" |
T2020 0M | 20 X 3/4" |
T2515 0M | 25 X 1/2" |
T2520 0M | 25 X 3/4" |
T2525 0M | 25 X 1" |
T3215 0M | 32 X 1/2" |
T3220 0M | 32 X 3/4" |
T3225 0M | 32 X 1" |
T3232 0M | 32 X 1.1/4" |
T4015 0M | 40 X 1/2" |
T4020 0M | 40 X 3/4" |
T4025 0M | 40 X 1" |
T4032 0M | 40 X 1.1/4" |
T4040 0M | 40 X 1.1/2" |
T5015 0M | 50 X 1/2" |
T5020 0M | 50 X 3/4" |
T5025 0M | 50 X 1" |
T5032 0M | 50 X 1.1/4" |
T5040 0M | 50 X 1.1/2" |
T5050 0M | 50 X 2" |

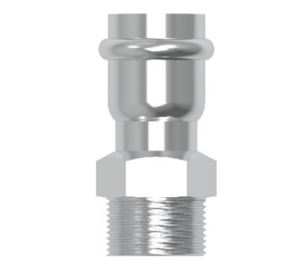

MALE ADAPTOR
PART NO. | DN |
M1515 00 | 15 X 1/2" |
M2015 00 | 20 X 1/2" |
M2020 00 | 20 X 3/4" |
M2515 00 | 25 X 1/2" |
M2520 00 | 25 X 3/4" |
M2525 00 | 25 X 1" |
M3225 00 | 32 X 1" |
M3232 00 | 32 X 1.1/4" |
M4032 00 | 40 X 1.1/4" |
M4040 00 | 40 X 1.1/2" |
M5040 00 | 50 X 1.1/2" |
M5050 00 | 50 X 2" |
M6065 00 | 60 X 2.1/2" |
M6565 00 | 65 X 2.1/2" |
M8080 00 | 80 X 3" |
M1B1B 00 | 100 X 4" |
