Push-in and Groove Aluminum Pipe Fittings

20MM-63MM PIPELINE PUSH FITTINGS

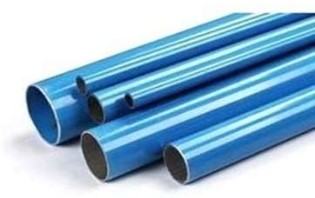

ALUMINIUM PIPES

PART NO.	∅	OD (MM)
P-82.900.020.104	20	4 mt.
P-82.900.025.105	25	5 mt.
P-82.900.040.106	40	5.8 mt.
P-82.900.050.106	50	5.8 mt.
P-82.900.063.106	63	5.8 mt.

STRAIGHT CONNECTOR

PART NO.	∅
PN0220	20
PN0225	25
PN0240	40
PN0250	50
PN0263	63

MALE ADAPTOR

PART NO.	∅
PN052012	20 X 1/2"
PN052034	20 X 3/4"
PN052512	25 X 1/2"
PN052534	25 X 3/4"
PN052501	25 X 1"
PN0540114	40 X 1.1/4"
PN0540112	40 X 1.1/2"
PN0550112	50 X 1.1/2"
PN055002	50 X 2"
PN056302	63 X 2"
PN0563212	63 X 2.1/2"

FEMALE ADAPTOR

PART NO.	∅
PN062012	20 X 1/2"
PN062534	25 X 3/4"
PN0640114	40 X 1.1/4"
PN0650112	50 X 1.1/2"
PN066302	63 X 2"

EQUAL ELBOW

PART NO.	∅
PN0320	20
PN0325	25
PN0340	40
PN0350	50
PN0363	63

MALE THREADED ELBOW

PART NO.	∅
PN322012	20 X 1/2"
PN322534	25 X 3/4"
PN3240112	40 X 1.1/2"
PN3250112	50 X 1.1/2"
PN326302	63 X 2"

EQUAL TEE

PART NO.	∅
PN0420	20
PN0425	25
PN0440	40
PN0450	50
PN0463	63

FEMALE THREADED TEE

PART NO.	∅
PN4120	20 X 1/2"
PN4125	25 X 3/4"
PN4140	40 X 1.1/4"
PN4150	50 X 1.1/2"
PN4163	63 X 2"

REDUCER

PART NO.	∅
PNRSC2520	25 X 20
PNRSC4020	40 X 20
PNRSC4025	40 X 25
PNRSC5020	50 X 20
PNRSC5025	50 X 25
PNRSC5040	50 X 40
PNRSC6325	63 X 25
PNRSC6340	63 X 40
PNRSC6350	63 X 50

END CAP

PART NO.	∅
PN1020	20
PN1025	25
PN1040	40
PN1050	50
PN1063	63

ALUMINIUM PUSHFIT & THREADED MANIFOLD BLOCK

PART NO.	∅
ALPNMB2012	20 X 1/2"-3 PURGE
ALPNMB2512	25 X 1/2"-3 PURGE
ALPNMB1212	1/2" X 1/2"-3 PURGE
ALPNMB3412	3/4" X 1/2"-3 PURGE
ALPNMB1112	1" X 1/2"-3 PURGE

40MM-150MM PIPELINE GROOVE FITTINGS

ALUMINIUM PIPES

PART NO.	∅	OD (MM)
PG-82.900.040.106	40	5.8 mt.
PG-82.900.050.106	50	5.8 mt.
PG-82.900.063.106	63	5.8 mt.
PG-82.900.090.106	90	5.8 mt.
PG-82.900.100.106	100	5.8 mt.
PG-82.900.150.106	150	5.8 mt.
PG-82.900.200.106	200	5.8mtr

GROOVE COUPLING

PART NO.	∅
PNGR0240	40
PNGR0250	50
PNGR0263	63
PNGR0290	90
PNGR02100	100
PNGR02150	150
PNGR02200	200

MALE ADAPTOR

PART NO.	∅
PNGRM40112	40 X 1.1/2"
PNGRM50112	50 X 1.1/2"
PNGRM5002	50 X 2"
PNGRM6302	63 X 2"
PNGRM63212	63 X 2.1/2"
PNGRM9003	90 X 3"
PNGRM1002	100 X 2"
PNGRM1003	100 X 3"

FEMALE ADAPTOR

PART NO.	∅
PNGRF40112	40 X 1.1/2"
PNGRF50112	50 X 1.1/2"
PNGRF5002	50 X 2"
PNGRF6302	63 X 2"
PNGRF63212	63 X 2.1/2"
PNGRF90112	90 X 1.1/2"
PNGRF9003	90 X 3"
PNGRF1002	100 X 2"
PNGRF1003	100 X 3"

FLANGE ADAPTOR

PART NO.	∅
PNGR0550	50 X 50
PNGR0563	63 X 63
PNGR0590	90 X 90
PNGR05100	100 X 100
PNGR05150	150 X 150
PNGR05200	200 X 200

EQUAL ELBOW

PART NO.	∅
PNGR0340	40
PNGR0350	50
PNGR0363	63
PNGR0390	90
PNGR03100	100
PNGR03150	150
PNGR03200	200

EQUAL TEE

PART NO.	∅
PNGR0440	40
PNGR0450	50
PNGR0463	63
PNGR0490	90
PNGR04100	100
PNGR04150	150
PNGR04200	200

FEMALE THREADED TEE

PART NO.	∅
PNFRT50112	50 X 1.1/2"
PNFRT63112	63 X 1.1/2"
PNFRT90212	90 X 2.1/2"
PNFRT15033	150 X 3"

REDUCING TEE

PART NO.	∅
PNRT6350	65 X 50
PNRT9050	90 X 50
PNRT9063	90 X 63
PNRT150100	150 X 100

REDUCING STRAIGHT CONNECTOR

PART NO.	∅
PNGRPR5020	50 X 20
PNGRPR5025	50 X 25
PNGRPR5040	50 X 40
PNGRPR6325	63 X 25
PNGRPR6340	63 X 40
PNGRR6350	63 X 50
PNGRR9050	90 X 50
PNGRR9063	90 X 63
PNGRR10050	100 X 50
PNGRR10063	100 X 63
PNGRR10090	100 X 90
PNGRR150100	150 X 100
PNGRR200100*	200 X 100

END CAP

PART NO.	∅
PNGR1040	40
PNGR1050	50
PNGR1063	63
PNGR1090	90
PNGR10100	100
PNGR10150	150
PNGR10200	200

SADDLE BRANCH

PART NO.	∅
PNSB2212	22 X 1/2"
PNSB2512	25 X 1/2"
PNSB2812	28 X 1/2"
PNSB3212	32 X 1/2"
PNSB4012	40 X 1/2"
PNSB4034	40 X 3/4"
PNSB5012	50 X 1/2"
PNSB5034	50 X 3/4"
PNSB5001	50 X 1"
PNSB6312	63 X 1/2"
PNSB6334	63 X 3/4"
PNSB6301	63 X 1"
PNSB7501	75 X 1"
PNSB7502	75 X 2"
PNSB9001	90 X 1"
PNSB9002	90 X 2"
PNSB10001	100 X 1"
PNSB10002	100 X 2"
PNSB11001	110 X 1"
PNSB11002	110 X 2"
PNSB15001	150 X 1"
PNSB15002	150 X 2"
PNSB15003	150 X 3"
PNSB16001	160 X 1"
PNSB16002	160 X 2"

QUICK DROP

PART NO.	∅
PNQD2520	25 X 20
PNQD3220	32 X 20
PNQD4020	40 X 20
PNQD4025	40 X 25
PNQD5020	50 X 20
PNQD5025	50 X 25
PNQD5032	50 X 32
PNQD6320	63 X 20
PNQD6325	63 X 25
PNQD6332	63 X 32
PNQD9020	90 X 20
PNQD9025	90 X 25
PNQD10020	100 X 20
PNQD10025	100 X 25

SADDLE WITH ELBOW OUTLET

PART NO.	∅
PNSE2520	25 X 20
PNSE3220	32 X 20
PNSE4020	40 X 20
PNSE4025	40 X 25
PNSE5020	50 X 20
PNSE5025	50 X 25
PNSE5032	50 X 32
PNSE6320	63 X 20
PNSE6325	63 X 25
PNSE6332	63 X 32
PNSE9020	90 X 20
PNSE9025	90 X 25
PNSE10032	100 X 32
PNSE10020	100 X 20
PNSE10025	100 X 25

INLINE BALL VALVE

PART NO.	∅
PNBV2020	20
PNBV2525	25
PNBV4040	40
PNBV5050	50

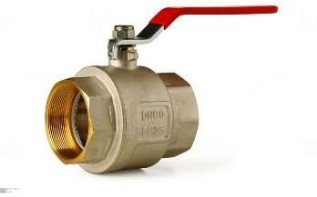

BRASS F/F BALL VALVE

PART NO.	∅
PNBV15	15-1/2"
PNBV20	20-3/4"
PNBV25	25-1"
PNBV32	32-1.1/4"
PNBV40	40-1.1/2"
PNBV50	50-2"
PNBV63	63- 2.1/2"
PNBV90	90 - 3"
PNBV100	100-4"

BRASS M/F BALL VALVE

PART NO.	∅
PNMFBV12	1/2"
PNMFBV34	3/4"
PNMFBV01	1"
PNMFBV114	1.1/4"
PNMFBV112	1.1/2"
PNMFBV02	2"
PNMFBV212	2.1/2"

AUDCO BALL VALVE (CS BODY)

PART NO.	∅
PNAUD15	1/2"
PNAUD20	3/4"
PNAUD25	1"
PNAUD32	1.1/4"
PNAUD40	1.1/2"
PNAUD50	2"

BUTTERFLY VALVE

PART NO.	∅
PNBFV63	2.1/2"
PNBFV90	3"
PNBFV100	4"
PNBFV150	6"
PNBFV200	8"

RUBBER LINED CLAMP -WALL FIXING

PART NO.	∅
PNRLC20	20
PNRLC25	25
PNRLC32	32
PNRLC40	40
PNRLC50	50
PNRLC63	63
PNRLC75	75
PNRLC90	90
PNRLC100	100
PNRLC110	110
PNRLC150	150
PNRLC160	160

RUBBER LINED CLAMP -WITHOUT WALL FIXING

PART NO.	∅
PNRLC20W	20
PNRLC25W	25
PNRLC32W	32
PNRLC40W	40
PNRLC50W	50
PNRLC63W	63
PNRLC90W	90
PNRLC100W	100
PNRLC150W	150

U - BEND PIPE

PART NO.	∅
20UBEND	20
25UBEND	25
40UBEND	40

S - BEND PIPE

PART NO.	∅
20SBEND	20
25SBEND	25
40SBEND	40
