Quick Overview:

Hydraulic Cylinders find their application in FLUID POWER when Force requirement is on the higher side. They are sturdier in construction as compared to pneumatic cylinders and are preferred when jerk free motions are required. These cylinders are available in different shapes & sizes to suit client applications.

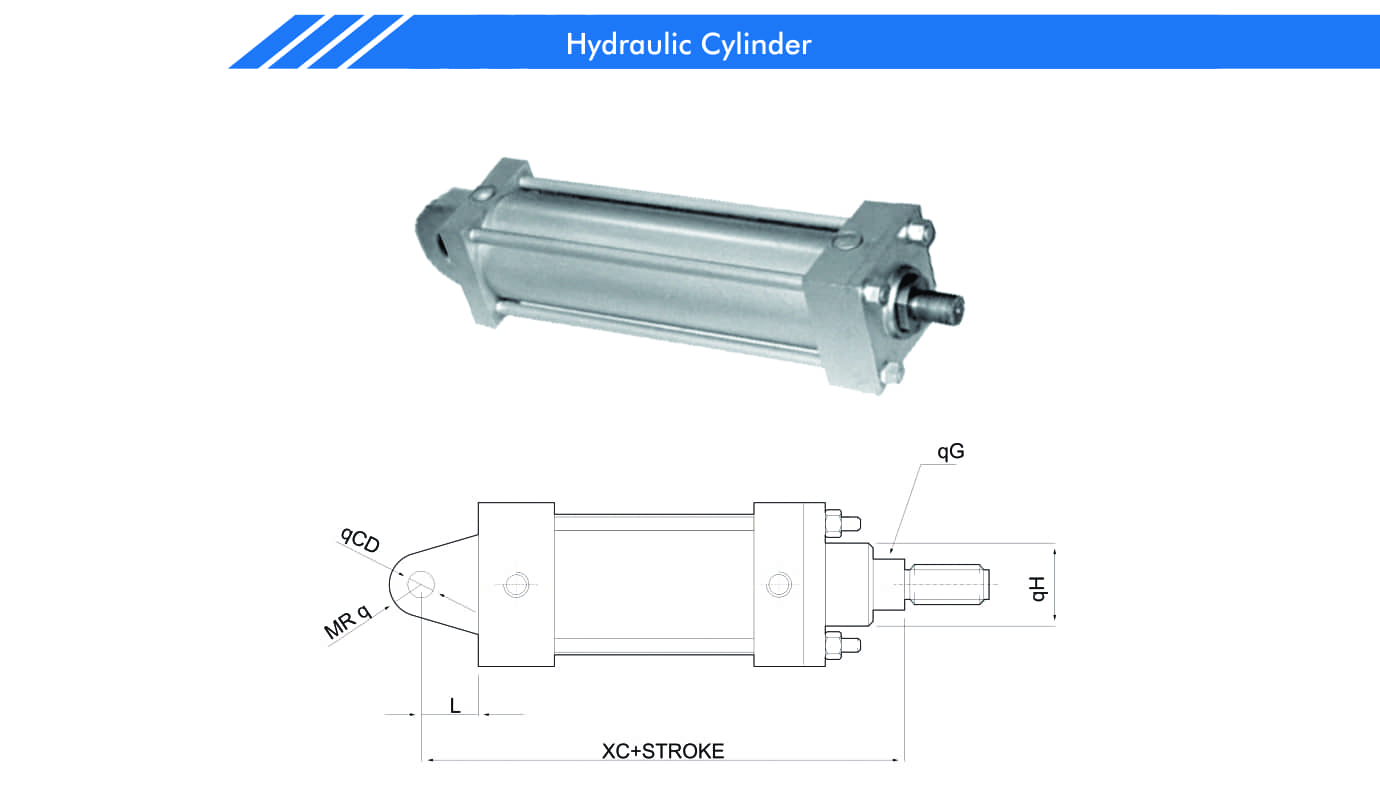

Series 10 - Square construction assembled and bolting using tie rods. Simple construction enables easy change of seals. Available in Bore sizes of 40mmto 200 mm and pressure up to 220 Bar. Mounting accessories can be provided on such as Flange, Pivot, Foot brackets, Trunion etc. cushioning possible on both ends.

Features : Cushioning possible at both ends to reduce impact at the end of the stroke.

Material of construction :

Tube - Carbon Steel duly hard chrome plated.

Seals - Fabric reinforced.

Covers - Steel Piston - Steel.

Piston Rod - En8 hard chrome plated.

Guide Bush - Gun Metal
