Pneumatic Cylinder SERIES 50

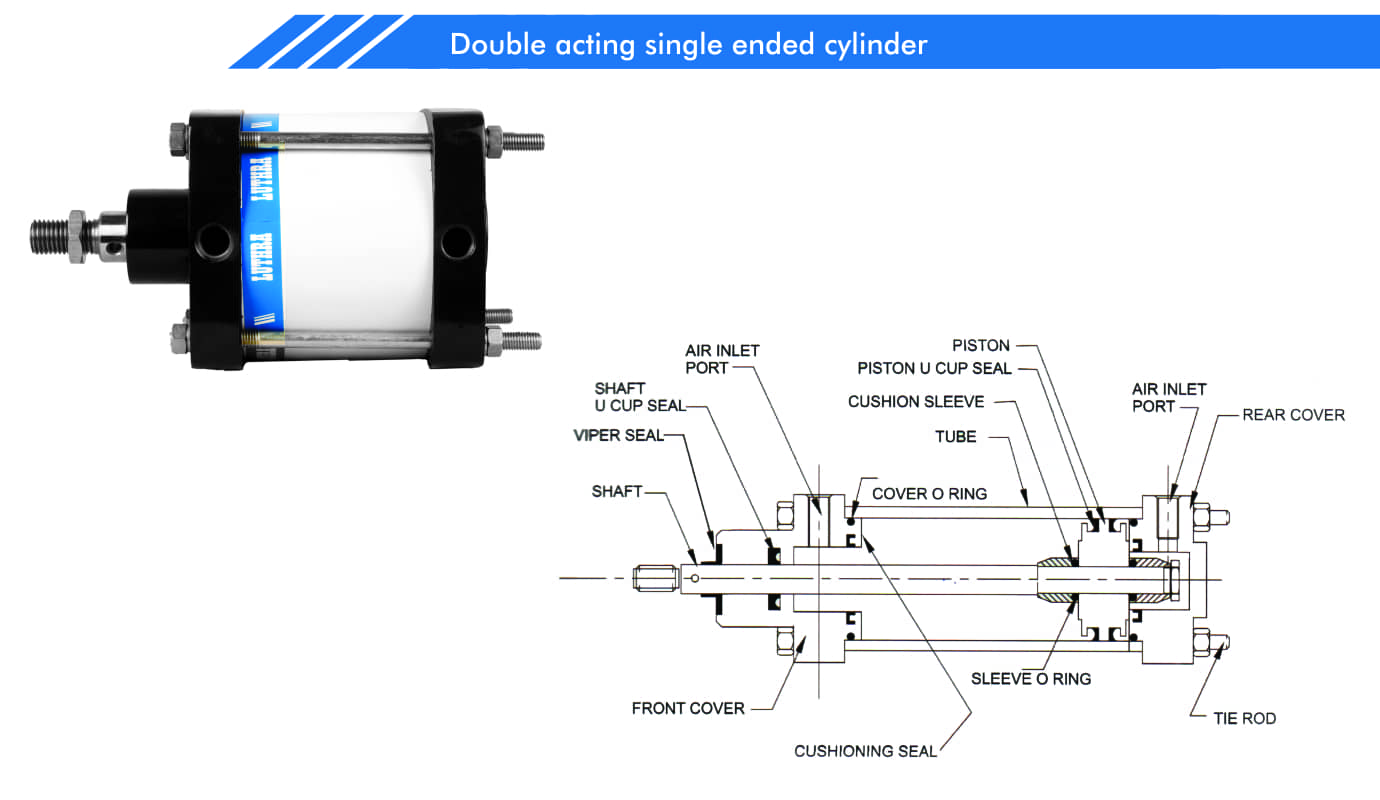

Double Acting Single Ended Cylinder
Series -50 cylinders are available in bore sizes of 25mm, 40, 50, 63 and 75 are available in Aluminium and Brass. For Bore 63mm to bore 350mm are available steel heavy duly honed and hard chrome plated. Also we have in different type of mountings. We can also provide customize cylinder as per the client requirement
Piston Rod : EN8 ground & hard chorme plated
Seals : Nitril (80°C), Viton (250°C)

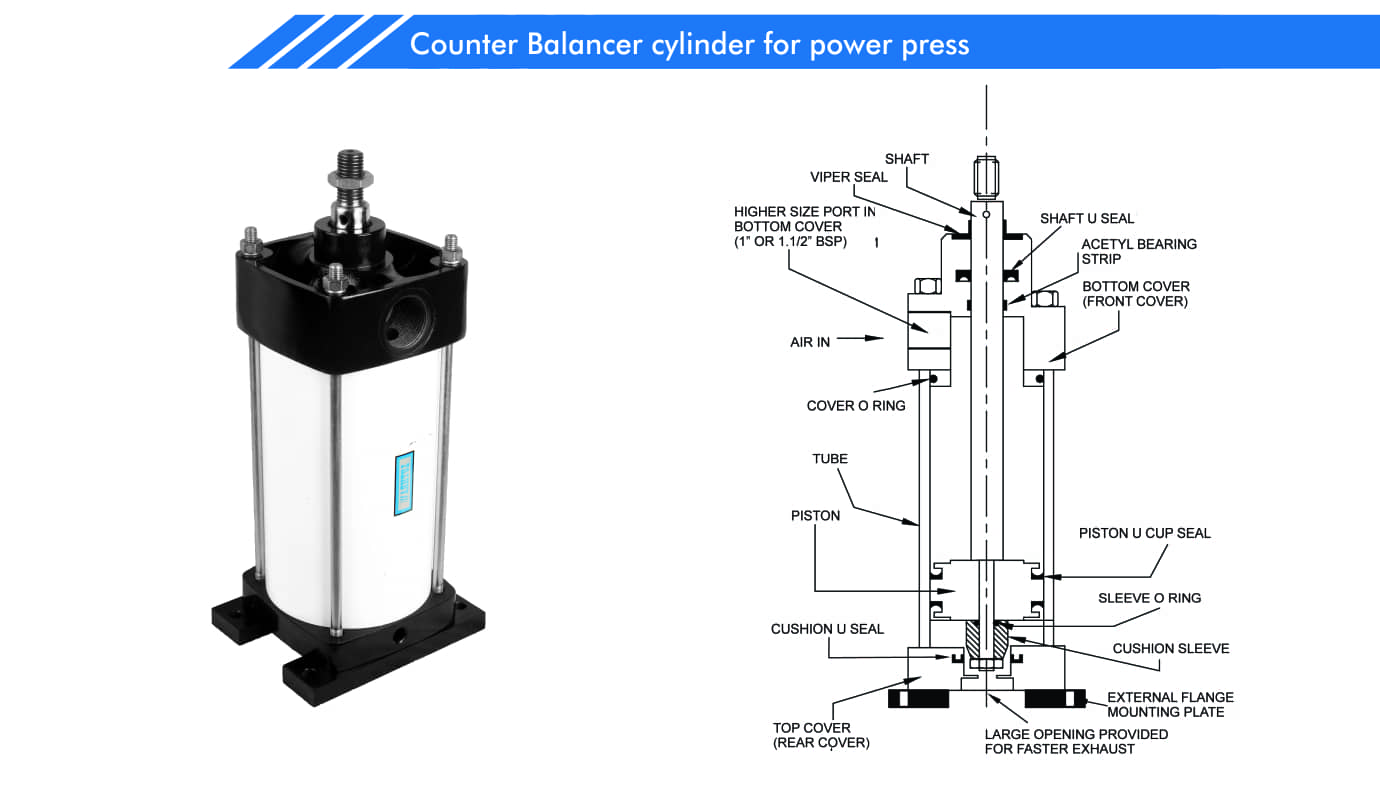

Balancer cylinder for Power Press
Our pneumatic counter balance cylinders are adapted for mechanical presses. They are mounted between the press ram and the press frame. This type of cylinder has bottom cover thicker than the standard cylinder to accommodate larger port size for inlet air. Also Top cover is provided with a circular opening at the back duly fitted with wire mesh for dust protection. This larger circular opening is provided for faster exhaust of the cylinder in the forward & reverse stroke. Dimension of Balancer Cylinder available on request only as most of the cylinders are made as per Individual clients requirements.
