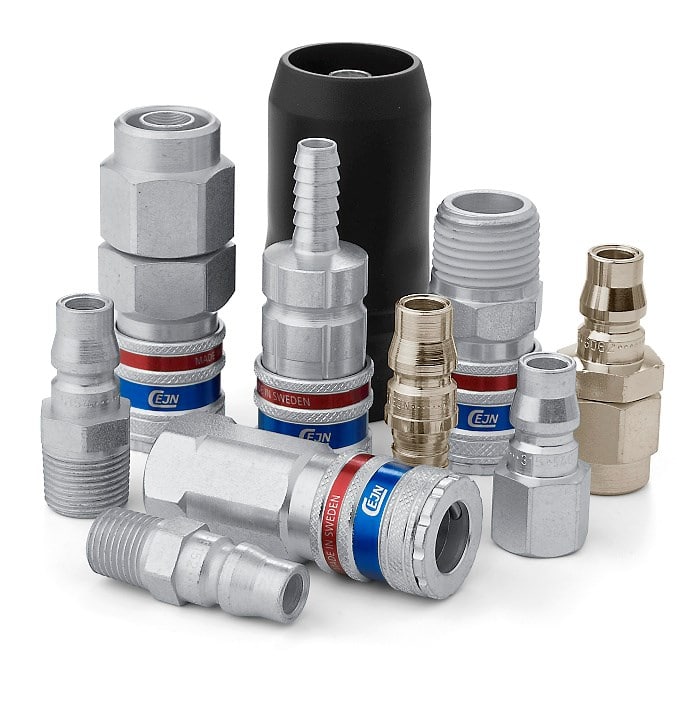

Pneumatic Quick Release Coupling

Pneumatic Quick Release Coupling

Pneumatic Quick Release Coupling

eSafe Series 315 couplings are lightweight and easy to handle yet strong and durable. It is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. The Series includes a wide range of connections. Male threads on the couplings and nipples feature pre-applied thread sealant. Full automatic operation ensures easy handling. eSafe complies with ISO Standard 4414 and EN 983.


Nominal flow diameter: 7.5 mm (5/16")
Air flow: 1950 l/min (68.8 CFM)
Max. working pressure: 16 bar (232 PSI)
Min. burst pressure: 140 bar (2030 PSI)
Connection force: 86 N
Temperature range: -20°C — +100°C (-4°F — +212°F)
Material coupling: Zinc-plated steel/brass
Material nipple: Hardened zinc-plated steel
