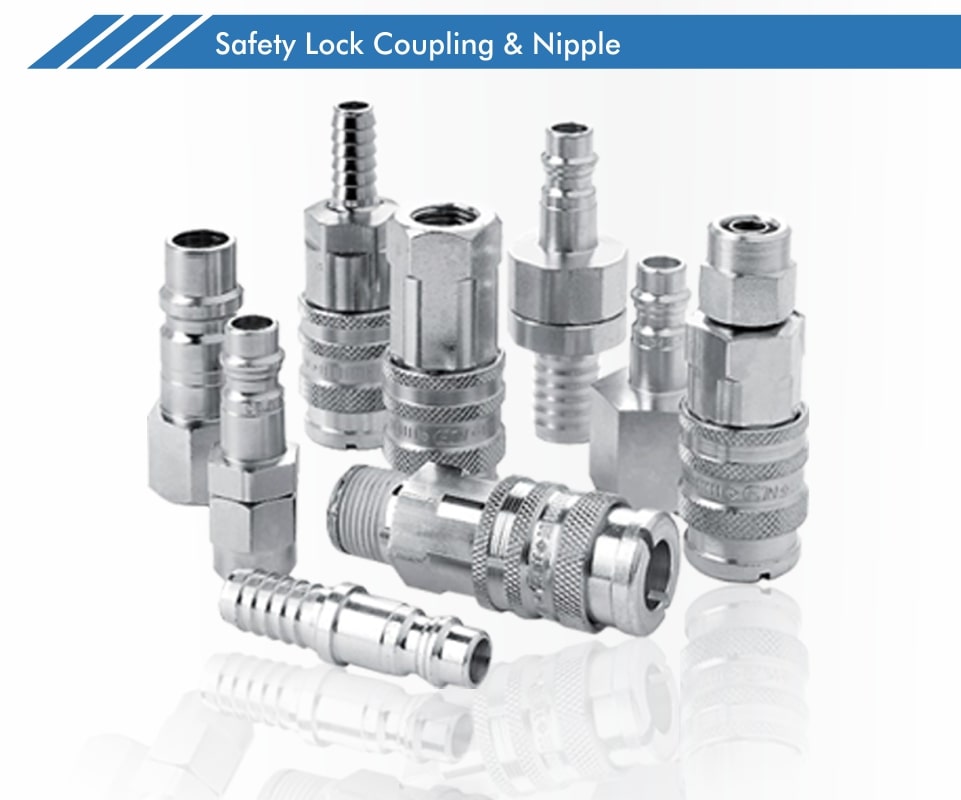

Safety Lock Coupling & Nipple

Safety Lock Coupling & Nipple

Safety Lock Coupling & Nipple

Series 342 couplings withstand extremely rough handling in extra tough applications. The Series features a zinc-plated steel construction with a locking sleeve made of hardened zinc-plated steel. The Series offers a wide range of connections, as well as anti-hose whip nipples. The automatic safety-locking feature prevents unintentional disconnection.


Nominal flow diameter: 7.4 mm (9/32")
Air flow: 1950 l/min (68.8 CFM)
Max. working pressure: 35 bar (507 PSI)
Min. burst pressure: 140 bar (2030 PSI)
Connection force: 103 N
Temperature range: -30°C — +100°C (-22°F — +212°F)
Material coupling: Zinc-plated steel/brass
Material nipple: Hardened zinc-plated steel
