Safety Quick Release Coupling

Safety Quick Release Coupling

Safety Quick Release Coupling

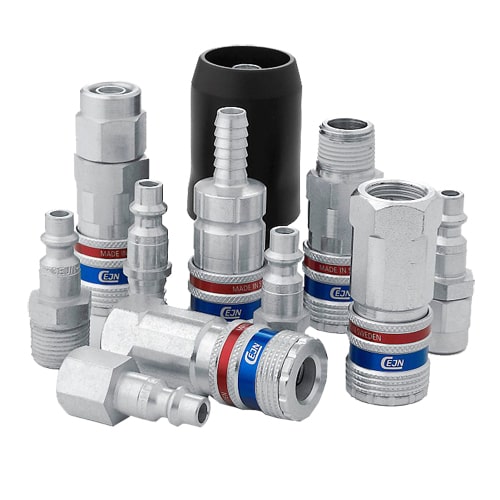

Series 300 eSafe couplings offer high flow and require only a low connection force, which ensures a safe working environment. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. A fully automatic operation ensures quick and easy handling. eSafe complies with ISO Standard 4414 and EN 983.


Nominal flow diameter: 5.5 mm (7/32")
Air flow: 1050 l/min (37.1 CFM)
Max. working pressure: 16 bar (232 PSI)
Min. burst pressure: 140 bar (2030 PSI)
Connection force: 86 N
Temperature range: -20°C — +100°C (-4°F — +212°F)
Material coupling: Zinc-plated steel/brass
Material nipple: Hardened zinc-plated steel
